Harley-Davidson 2022 LOW RIDER™ EL DIABLO for sale at Central Coast Harley-Davidson® in West Gosford, NSW

Harley-Davidson 2022 Low Rider™ El Diablo for Sale Central Coast & North Sydney Australia

2022 Low Rider™ El Diablo Specifications and Information

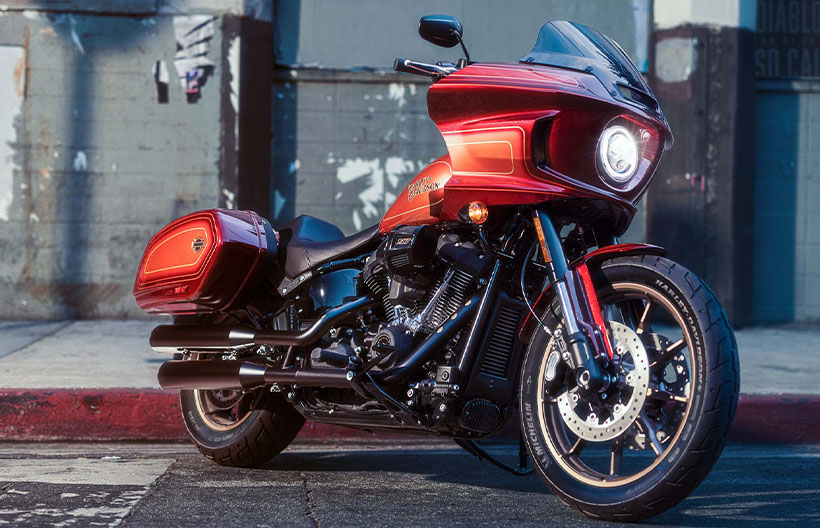

A modern expression of the iconic 1983 Harley-Davidson FXRT and representation of the custom movement it ignited that lives on to this day, the 2022 Low Rider El Diablo embodies the spirit of counterculture in Southern California in the ‘80s in a contemporary package that includes meticulously crafted custom paint and high-performance audio from Rockford Fosgate, each one individually serialized.

THIS IS THE RIGHT BIKE FOR

Fans of the FXRT and ‘80s SoCal styling
Riders looking for outrageous performance and the attitude to match
Those that appreciate craftsmanship and attention to detail in a highly exclusive, limited-edition bike

Price is for Vivid Black (or solid colour where Vivid Black is not offered). Overseas model shown. The visual appearance and specifications of vehicles may vary by market and may differ from vehicles manufactured and delivered. Please contact your local Harley-Davidson dealership for more information. All comparisons made are between original equipment 2019 and 2020 models.

Milwaukee-Eight 114™ Engine

Loads of torque for blasting off from stoplights, hitting entrance ramps, and rolling on the passing power. Pure sound with a soul-satisfying rumble.

FRAME MOUNTED FAIRING

A modern take on the classic FXRT Sport Glide™ fairing favored by West Coast customizers.

CUSTOM CRAFTED PAINT

A detailed paint scheme that begins with a base of El Diablo Bright Red and a second pass of Bright Red Sunglo followed by pinstriping and layers of El Diablo Dark Red and Dark Red Pearl faded around panel shapes for depth.

Engine

Engine ² Milwaukee-Eight^® 114
Bore 102 mm
Stroke 114 mm
Displacement 1,868 cc
Compression Ratio 10.5:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust 2-into-2 shotgun; catalyst in muffler

Dimensions

Length 2,355 mm
Seat Height, Unladen 690 mm
Ground Clearance 120 mm
Rake (steering head) (deg) 28
Trail 145 mm
Wheelbase 1,615 mm
Tyres, Front Specification 110/90B19,62H,BW
Tyres, Rear Specification 180/70B16,77H,BW
Fuel Capacity 18.9 l
Oil Capacity (w/filter) 4.7 l
Weight, As Shipped 295 kg
Weight, In Running Order 308 kg

Performance

Engine Torque Testing Method EC 134/2014
Engine Torque ³ 155 Nm
Engine Torque (rpm) 3,000
Lean Angle, Right (deg.) 30.1
Lean Angle, Left (deg.) 30.1

Drivetrain

Primary Drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.311
Gear Ratios (overall) 2nd 6.454
Gear Ratios (overall) 3rd 4.793
Gear Ratios (overall) 4th 3.882
Gear Ratios (overall) 5th 3.307
Gear Ratios (overall) 6th 2.79

Chassis

Wheels, Front Type Dark bronze, Radiate cast Aluminium wheel
Wheels, Rear Type ⁷ Dark bronze, Radiate cast Aluminium wheel
Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear

Electric

Lights (as per country regulation), Indicator Lamps ⁶ High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
Gauges 4 inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication; 4 inch analog tachometer

Infotainment

ANTI-LOCK BRAKE SYSTEM (ABS) Included

Prices listed are the ride away pricing for base models. Options such as colour are available at additional cost. Ride Away Price includes registration fees and CTP insurance where applicable. Prices subject to change without prior notice.
Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
Values shown are nominal. Performance may vary by country and region.
Standard and optional wheels may vary by country and region.
Riding range estimates provided following the WMTC 134/2014 Annex VII Appendix 3.3 are based on expected performance of a fully-charged battery when operated under specific conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions. Range as shown is with maximum power and minimum regeneration selected.
