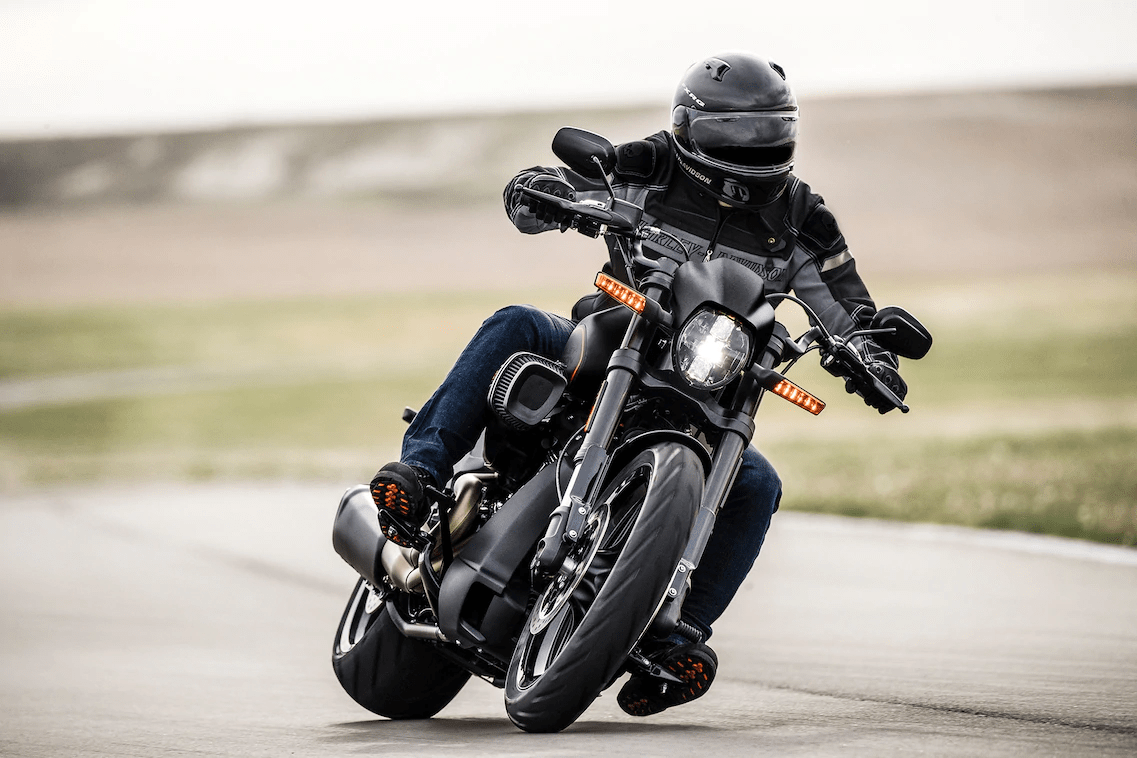

MOVES YOU IN WAYS YOU'VE NEVER BEEN MOVED BEFOREThe all-new FXDR™ 114 is a feast for the eyes with performance and attitude that's off the leash. Fast on the straights. Agile in the corners. It'll blow away your senses.
Price is for Vivid Black (or solid colour where Vivid Black is not offered). Overseas model shown. The visual appearance and specifications of vehicles may vary by market and may differ from vehicles manufactured and delivered. Please contact your local Harley-Davidson dealership for more information. All comparisons made are between original equipment 2019 and 2020 models.
Milwaukee-Eight 114® Engine
Minimal Weight for Maximum Performance
Bold 2-into-1 Exhaust
Stretched Fuel Tank
High Performance Rear Suspension
- Milwaukee-EightÂ® ENGINE :
- Engine 2 Milwaukee-Eight® 114
- Bore 102 mm
- Stroke 114 mm
- Displacement 1,868 cc
- Compression Ratio 10.5:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust 2-into-1; catalyst in header
- Length 2,425 mm
- Seat Height, Unladen 720 mm
- Ground Clearance 140 mm
- Rake (steering head) (deg) 34
- Trail 120 mm
- Wheelbase 1,735 mm
- Tyres, Front Specification 120/70ZR-19 60W
- Tyres, Rear Specification 240/40R-18 79V
- Fuel Capacity 16.7 l
- Oil Capacity (w/filter) 4.7 l
- Weight, As Shipped 289 kg
- Weight, In Running Order 303 kg
- Engine Torque Testing Method EC 134/2014
- Engine Torque 2 160 Nm
- Engine Torque (rpm) 3,500
- Lean Angle, Right (deg.) 32.6
- Lean Angle, Left (deg.) 32.8
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 9.311
- Gear Ratios (overall) 2nd 6.454
- Gear Ratios (overall) 3rd 4.793
- Gear Ratios (overall) 4th 3.882
- Gear Ratios (overall) 5th 3.307
- Gear Ratios (overall) 6th 2.79
- Wheels, Front Type 9 Gloss/satin black, split 5-spoke, Ace cast aluminum with laser etched graphics
- Wheels, Rear Type Gloss/satin black, solid disc, Ace cast aluminum with laser etched graphics
- Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear
- Lights (as per country regulation), Indicator Lamps 8 High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
- Gauges 2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
- Prices listed are the Manufacturerâ€™s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
- Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- Standard and optional wheels may vary by country and region.
- Riding range estimates provided following the WMTC 134/2014 Annex VII Appendix 3.3 are based on expected performance of a fully-charged battery when operated under specific conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions. Range as shown is with maximum power and minimum regeneration selected.
