A NEW STRIPPED-BACK TOURING ICON
Starting at $34,495AUD / $37,995NZD
Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. See your dealer for details. Please contact your nearest dealer for further details and pricing. All comparisons made are between original equipment 2018 and 2019 models.

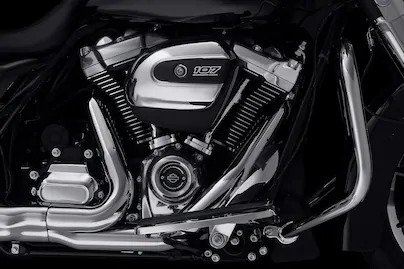

MILWAUKEE-EIGHT® V-TWIN ENGINE
SOLO TOURING SEAT
BATWING FAIRING & MID-HEIGHT WINDSHIELD
EMULSION-TECHNOLOGY REAR SHOCK ABSORBERS
49MM FORKS WITH DUAL BENDING VALVE SUSPENSION
- Vivid Black $34,495AUD
- Engine 2 Milwaukee-Eight® 107
- Bore 100 mm
- Stroke 111 mm
- Displacement 1,745 cc
- Compression Ratio 10.0:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers
- Length 2,400 mm
- Seat Height, Unladen 680 mm
- Ground Clearance 120 mm
- Rake (steering head) (deg) 26
- Trail 170 mm
- Wheelbase 1,625 mm
- Tyres, Front Specification BW 130/80B17 65H
- Tyres, Rear Specification BW 180/65B16 81H
- Fuel Capacity 22.7 l
- Oil Capacity (w/filter) 4.9 l
- Weight, As Shipped 354 kg
- Weight, In Running Order 372 kg
- Luggage Capacity -Volume 0.064 m3
- Engine Torque Testing Method EC 134/2014
- Engine Torque 3 150 Nm
- Engine Torque (rpm) 3,250
- Lean Angle, Right (deg.) 31
- Lean Angle, Left (deg.) 29
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 9.593
- Gear Ratios (overall) 2nd 6.65
- Gear Ratios (overall) 3rd 4.938
- Gear Ratios (overall) 4th 4
- Gear Ratios (overall) 5th 3.407
- Gear Ratios (overall) 6th 2.875
- Wheels, Front Type Impeller Cast Aluminum
- Wheels, Rear Type 7 Impeller Cast Aluminum
- Brakes, Caliper Type 32 mm, 4-piston fixed front and rear
- Lights (as per country regulation), Indicator Lamps 6 High beam, running lights, directional lights, low oil pressure, engine diagnostics, neutral, cruise control, accessory, battery, gear indication, security system, 6-speed, low fuel warning, ABS, miles to empty display, fog/aux lamp indicator
- Gauges Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
- Availability of colours may vary from dealer to dealer and is subject to change without further notice.
- Recommended 95 octane or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- See motorcycle owner’s manual for complete details.
- All models include security system *, 24 months Harley Assist, and 12 months International HOG membership. Price advertised is the maximum dealer ride away price. Offer ends Aug 31, 2018 unless extended. For Australia the ride away price includes 12 months private registration, 12 months Compulsory Third Party Insurance, Dealer Delivery and Stamp Duty ^. Optional extras not included. Full details on pricing can be obtained from your local authorised dealer. ^Ride Away pricing for Australia is based on a purchaser with a good riding record- may be higher for other purchasers that do not meet this criteria
- Security system includes immobiliser and siren.
- Standard and optional wheels may vary by country and region.
- Model specifications, including fitted parts and accessories vary by country and region.
