A NSWMENT OF INDIVIDUALITY ON TWO WHEELS
Starting at $19,250AUD / $19,750NZD
*Price is for Vivid Black (or solid colour where Vivid Black is not offered). Overseas model shown. The visual appearance and specifications of vehicles may vary by market and may differ from vehicles manufactured and delivered. Please contact our Call Centre on 1800 464258 AU / 0800464258 NZ for details. All comparisons made are between original equipment 2018 and 2019 models.

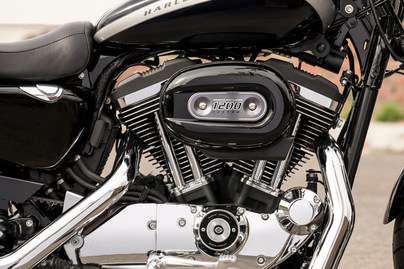

1200cc Air-Cooled Evolution Engine
An iconic V-Twin engine that is renowned for its massive low-end torque and soul-satisfying sound. Lightweight aluminum heads and cylinders improve air-cooling efficiency.

Blacked-Out and Chrome Details
The 1200 Evolution® V-Twin engine features black rockers, a black chrome oval air cleaner cover, and a black-and-chrome timer cover. Set against all that: a chrome shorty dual exhaust.

Black Laced Steel Wheels
When it comes to custom, standout wheels are a must. The sleek black laced steel wheels, for a raw, classic look wherever you roll. Custom style for a custom ride.

Closed Loop Exhaust System
It delivers heart-pounding performance and a soul-satisfying rumble, and is designed to meet future worldwide emissions standards.

Custom-Style Paint
Features bold, fast graphics with a racing stripe on the fuel tank.
Engine
- Engine 2 Air-cooled, Evolution™
- Bore 88.9 mm
- Stroke 96.8 mm
- Displacement 1,202 cc
- Compression Ratio 10:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust Chrome, staggered exhaust with slash-cut mufflers
Dimensions
- Length 2,225 mm
- Seat Height, Unladen 725 mm
- Ground Clearance 105 mm
- Rake (steering head) (deg) 30
- Trail 107 mm
- Wheelbase 1,530 mm
- Tyres, Front Specification 130/90B16 73H
- Tyres, Rear Specification 150/80B16 77H
- Fuel Capacity 17 l
- Oil Capacity (w/filter) 2.6 l
- Weight, As Shipped 255 kg
- Weight, In Running Order 268 kg
Performance
- Engine Torque Testing Method EC 134/2014
- Engine Torque 3 97 Nm
- Engine Torque (rpm) 3,500
- Lean Angle, Right (deg.) 26.2
- Lean Angle, Left (deg.) 28.3
Drivetrain
- Primary Drive Chain, 38/57 ratio
- Gear Ratios (overall) 1st 9.004
- Gear Ratios (overall) 2nd 6.432
- Gear Ratios (overall) 3rd 4.783
- Gear Ratios (overall) 4th 3.965
- Gear Ratios (overall) 5th 3.4
Chassis
- Wheels, Front Type Black Steel Laced
- Wheels, Rear Type 7 Black Steel Laced
- Brakes, Caliper Type Dual-piston front, Dual-piston rear
Electric
- Lights (as per country regulation), Indicator Lamps 6 High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system, ABS
- Gauges Handlebar-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
- Availability of colours may vary from dealer to dealer and is subject to change without further notice.
- Recommended 95 octane or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- See motorcycle owner’s manual for complete details.
- All models include security system *, 24 months Harley Assist, and 12 months International HOG membership. Price advertised is the maximum dealer ride away price. Offer ends Aug 31, 2018 unless extended. For Australia the ride away price includes 12 months private registration, 12 months Compulsory Third Party Insurance, Dealer Delivery and Stamp Duty ^. Optional extras not included. Full details on pricing can be obtained from your local authorised dealer. ^Ride Away pricing for Australia is based on a purchaser with a good riding record- may be higher for other purchasers that do not meet this criteria.
- Security system includes immobiliser and siren.
- Standard and optional wheels may vary by country and region.
- Model specifications, including fitted parts and accessories vary by country and region.
2019 1200 CUSTOM
Colours
Available Colours
-
Midnight Blue
-
Rawhide
-
Wicked Red/Twisted Cherry
-
Silver Flux / Black Fuse
-
Industrial Gray Denim / Black Denim
